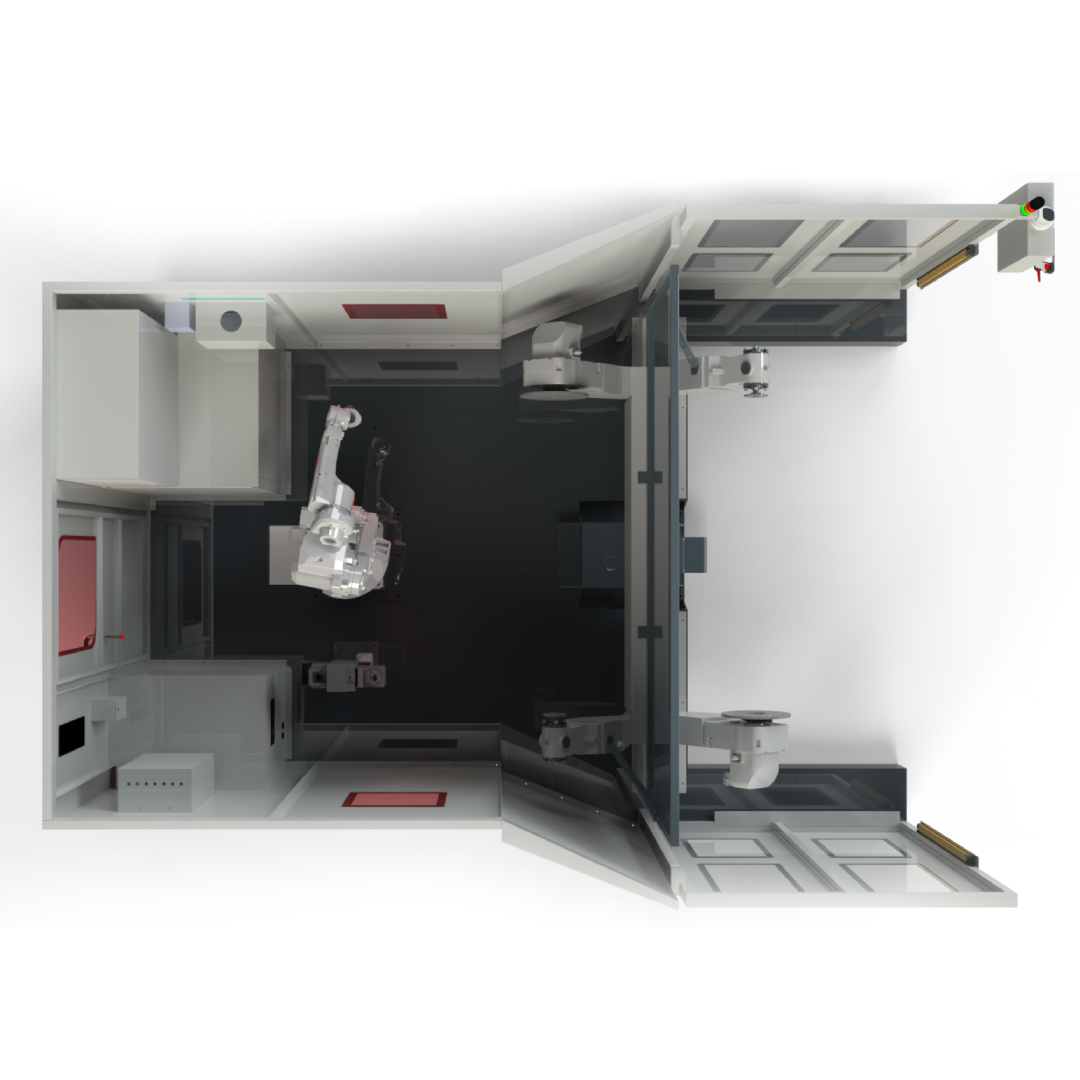

WELDONE R Robotic Welding Cell

Compact welding cell with a rotary table and dual stations.

Dual-Station Rotary Table

Each station can be rotated with the help of a single-axis positioner, ensuring an optimum welding position is achieved.

High Payload Capacity

It enables the welding of heavy parts up to 1000 kg at each station.

Modular Industrial Design

Offers fast installation and easy maintenance, as well as minimum position loss during relocation.

Request a Quote See All Models

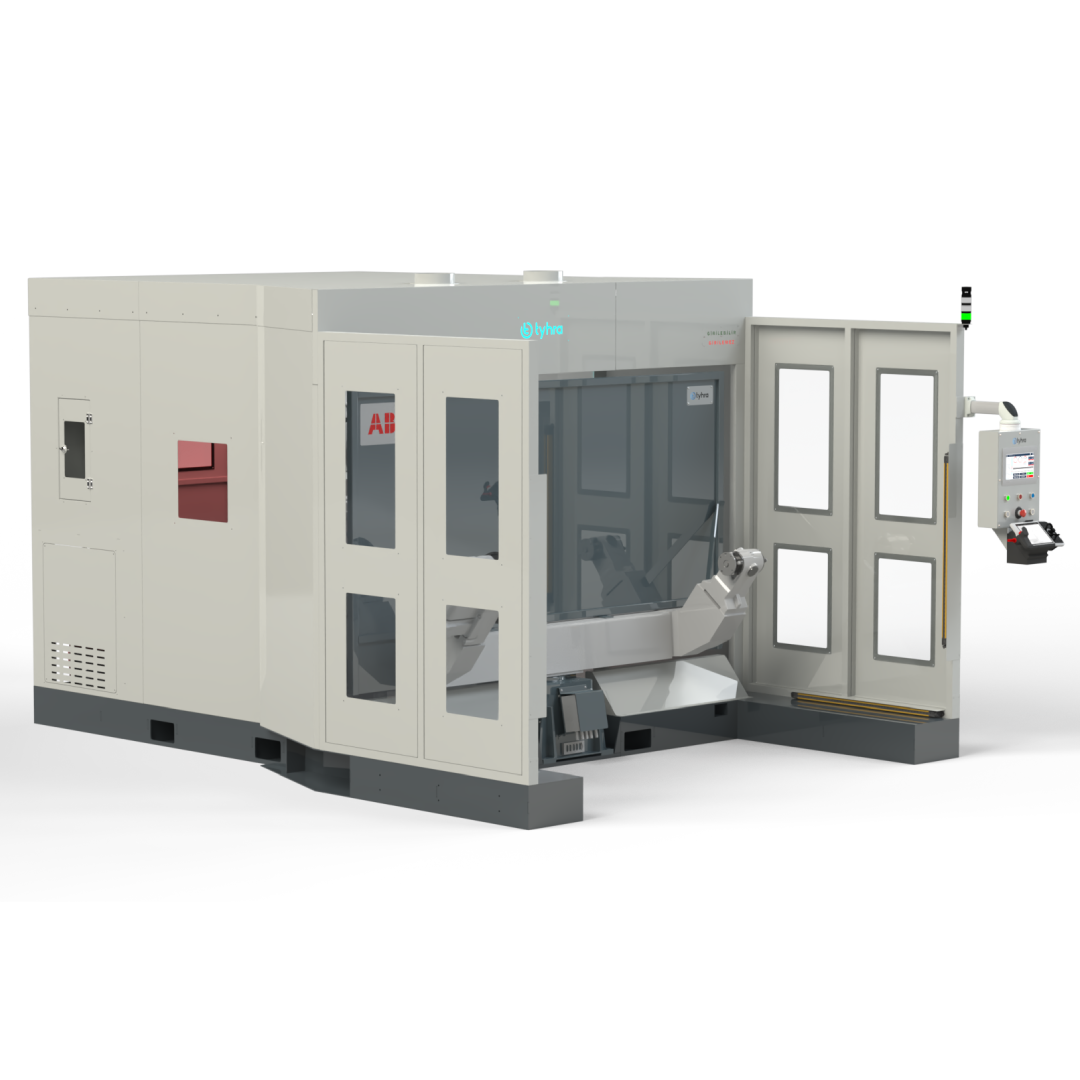

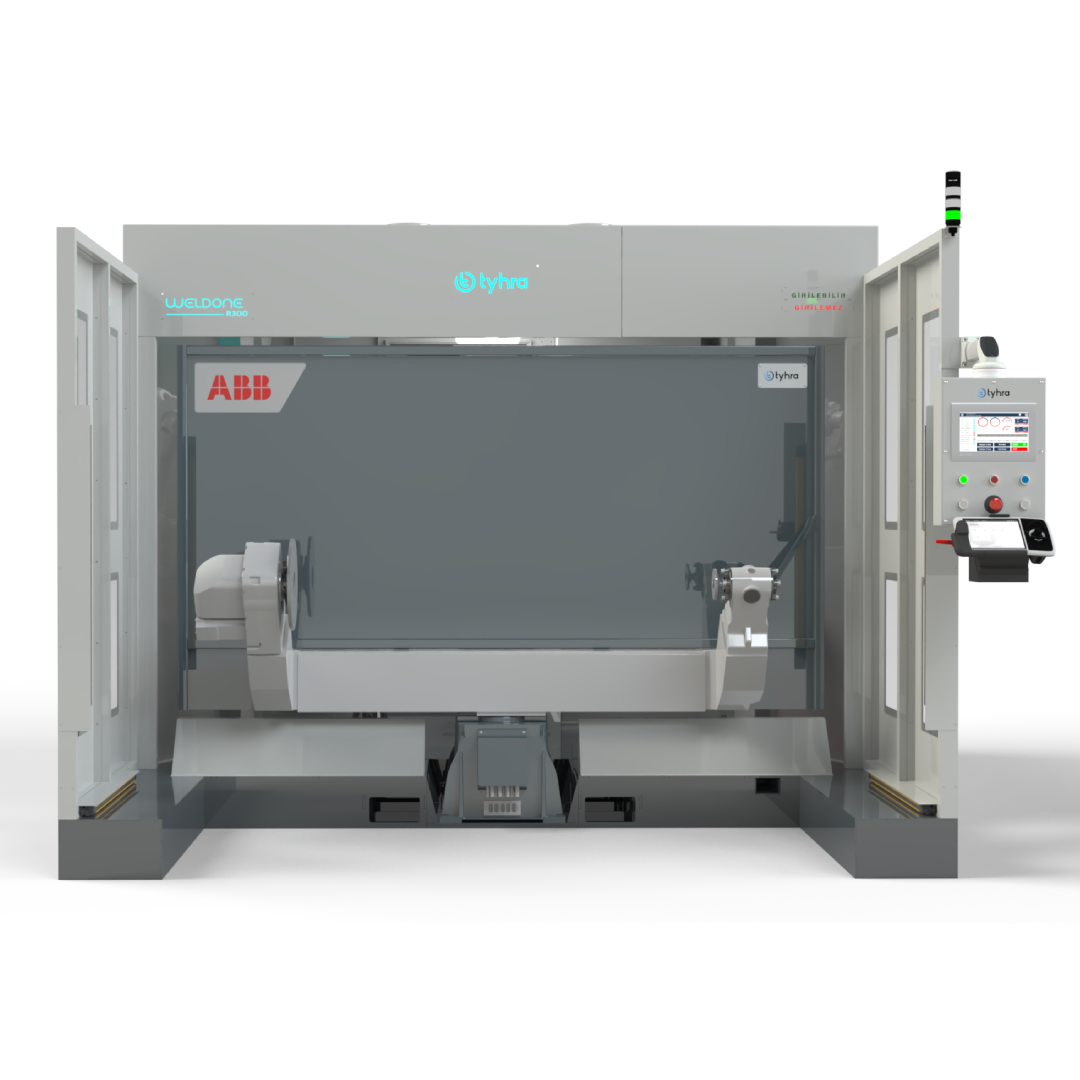

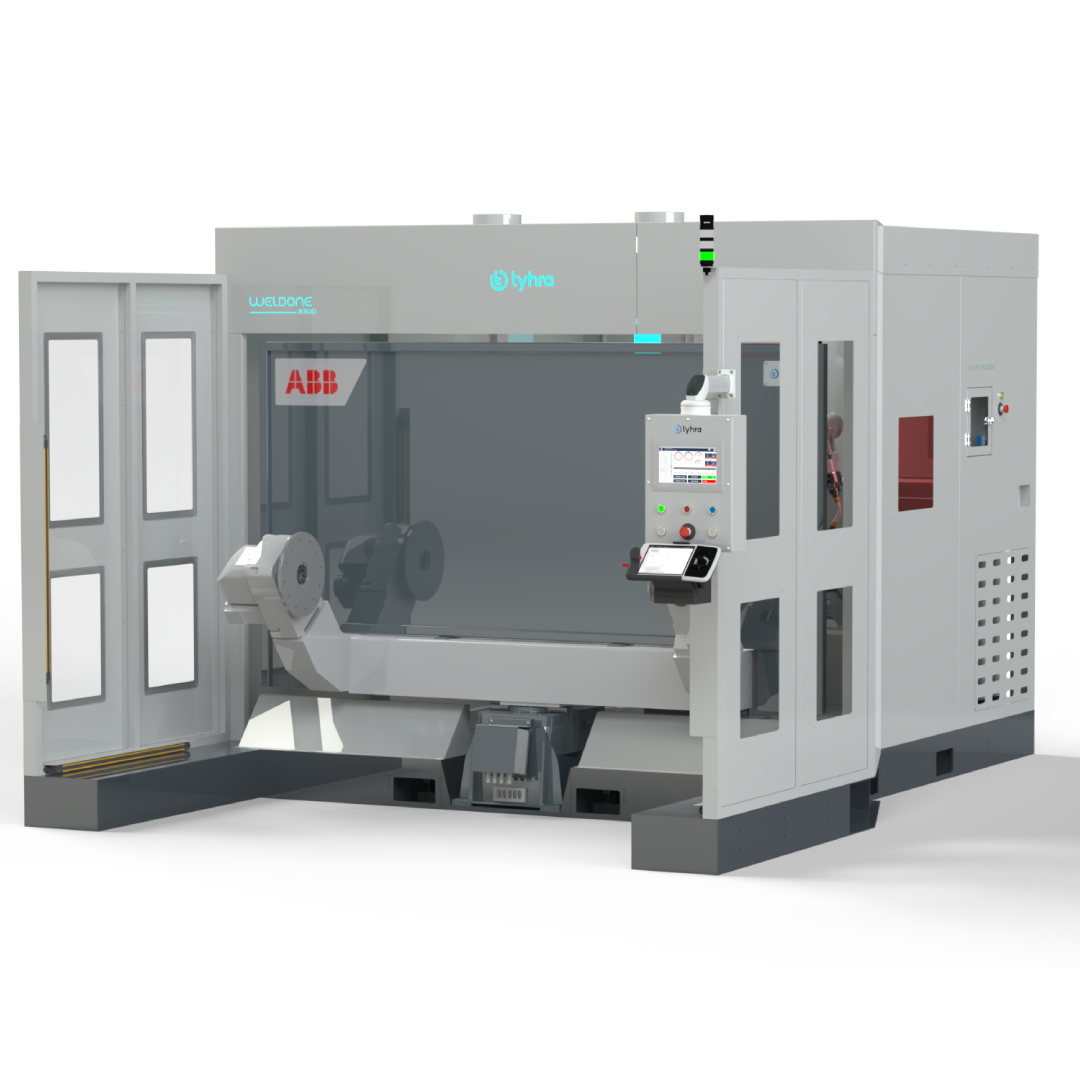

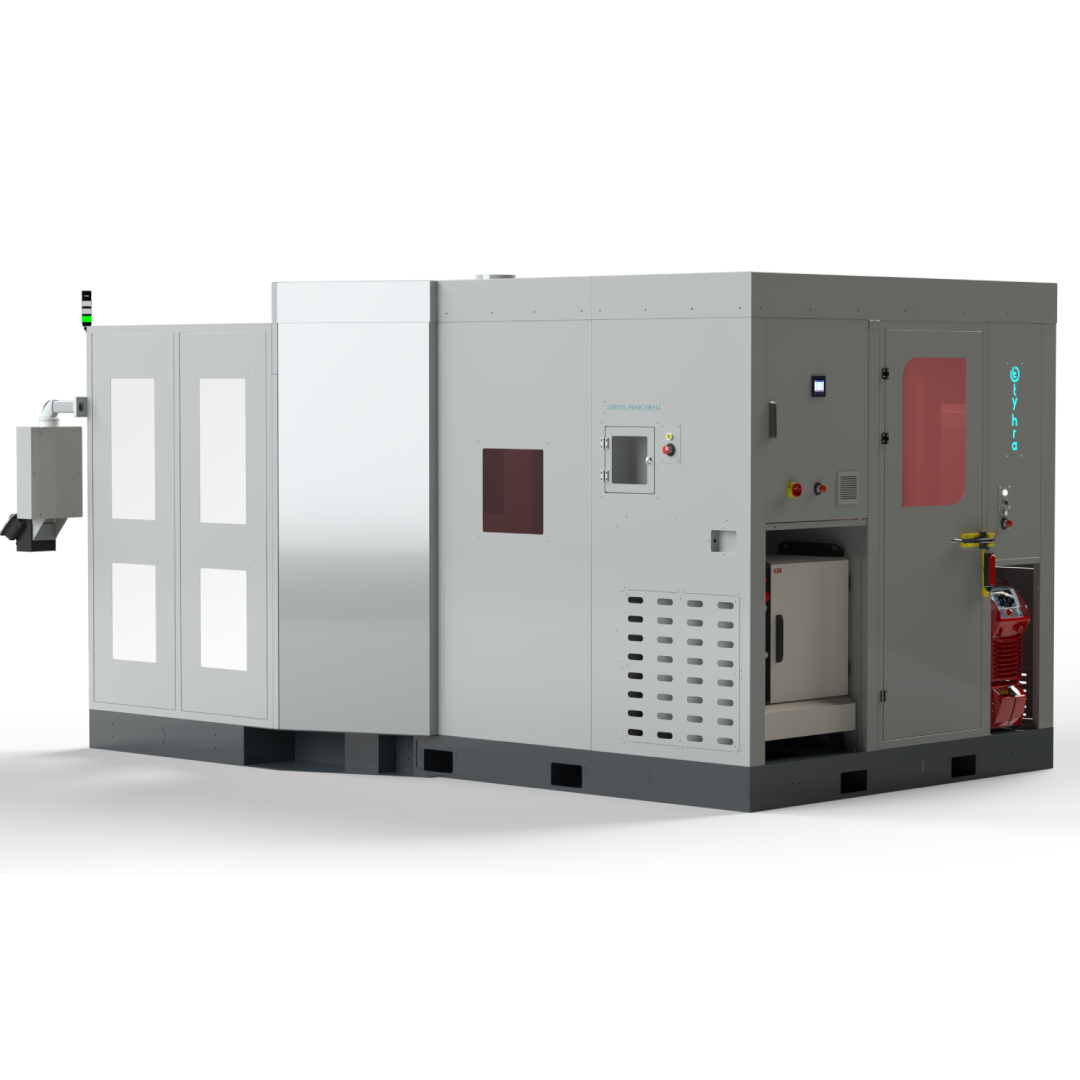

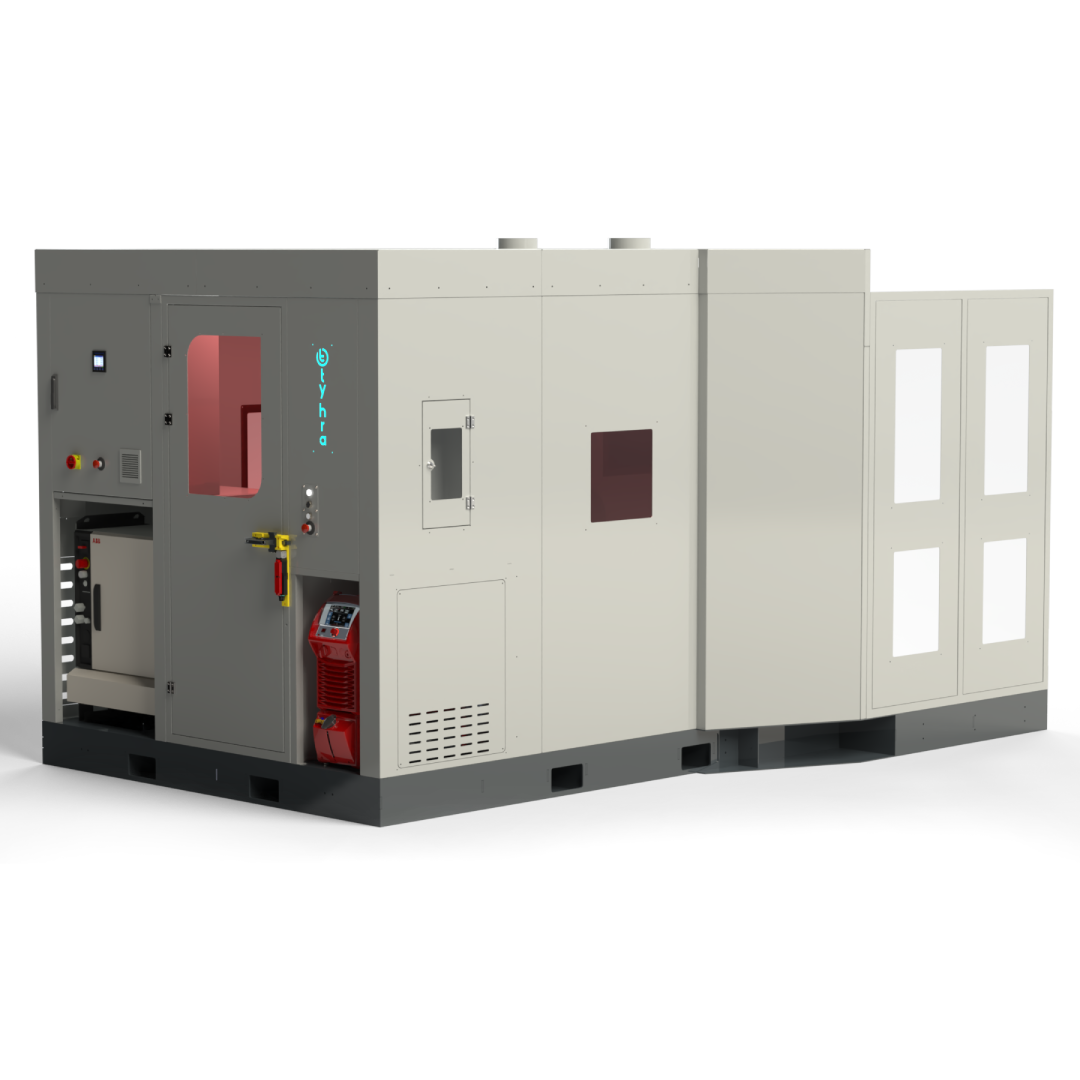

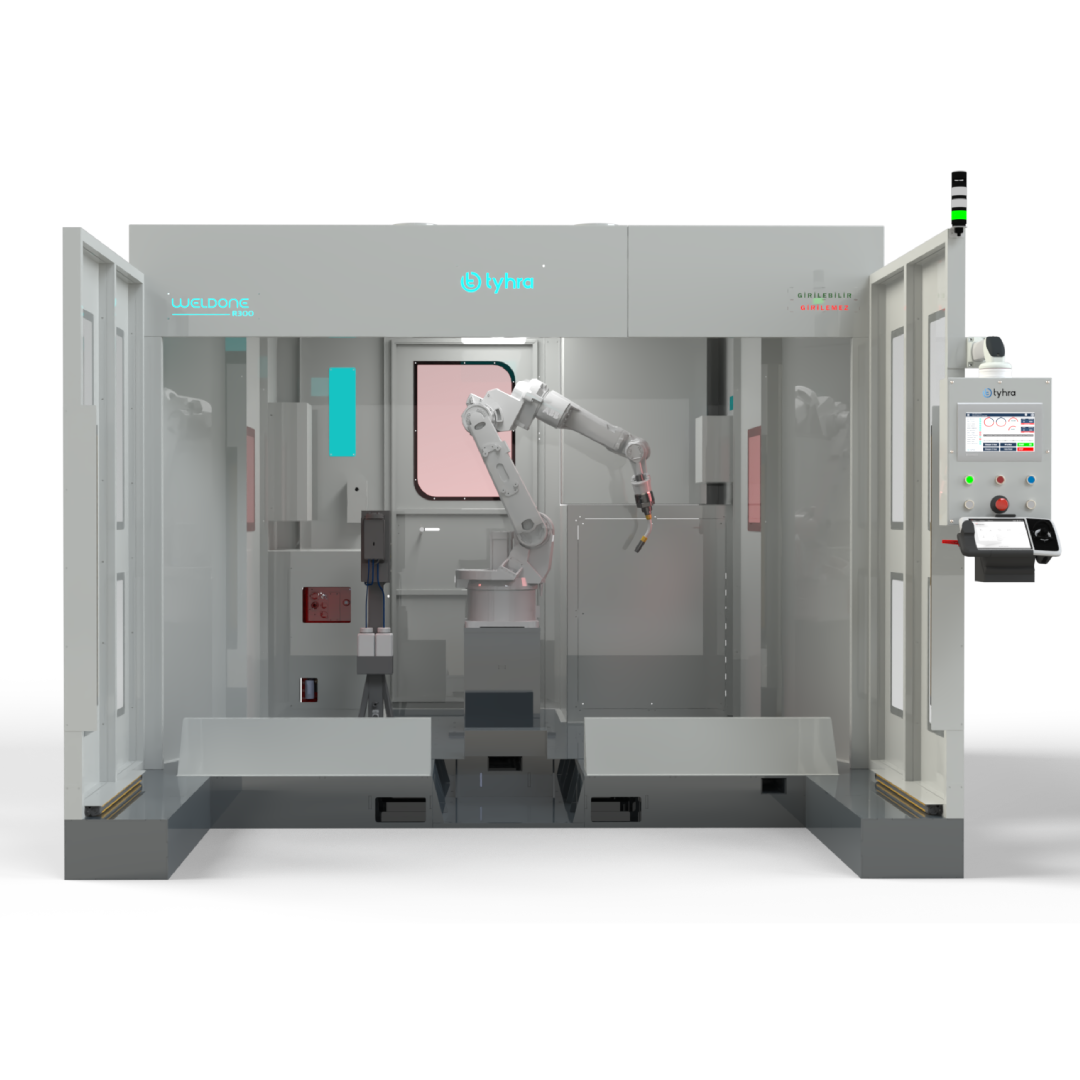

Weldone R Robotic Welding Cell

It stands out with features that set new standards in the field of welding automation.

Dual-Station and Two-Axis Positioner Weldone R Series

This system provides uninterrupted production thanks to its rotary table; it allows loading/unloading at the other station while the robot is operating. Thanks to the two-axis positioner at each station, it guarantees flawless results by bringing your workpieces to the perfect welding position.

The Tyhra robotic welding cell is manufactured based on safety and superior functionality. It offers long-lasting use thanks to its robust structure and is specially designed to maximize efficiency in robotic applications with its easy portability feature.
In these cells, the robot, fixture table, and positioners are integrated on a single platform. This way, even if the cell's location changes, existing welding programs are not disrupted. Thus, operators save significant programming time.
All welding equipment is positioned inside the cell. Additionally, there is a dedicated safety maintenance door for robot maintenance. Harmful gases generated during the welding process are safely exhausted through suction vents inside the cabin.

Standard Equipment

  • Power Distribution and Automation Panel (400VAC, 220 VAC, 24 VDC)
  • Pneumatic Control and Distribution Panel
  • Fully Enclosed Cell System
  • Service Door and Safety Equipment
  • Service Window
  • Light Barriers for Loading Area Safety
  • 11" Operator Panel Fully Integrated with Robot
  • Torch Cleaning Station

Optional Equipment

  • Remote Access and Data Collection System
  • Energy Analyzer
  • Area Scanner
  • Air and Signal Infrastructure for Fixtures to be used on Positioners
  • 15" Operator Panel
  • Welding Wire Presence Control
  • In-Cell Process Monitoring Camera
  • Automatic Torch Calibration Unit

Positioner Used (R-type)

Payload Capacity

250-750 kg

Indexing Time

3.4 s - 3.8 s

Max Fixture Width

ø1000 mm - ø1450 mm

Max Fixture Height

1000 mm

Examine the positioner in detail

Compatible Robots

Robotic Welding Cells
Compatible robots in order: IRB 1520ID, IRB 1660ID, IRB 2600, IRB2600ID
Reach

1.50 m - 2.00 m

Payload Capacity

4 kg - 20 kg

Position Repeatability

0.02 mm - 0.05 mm

Path Repeatability

0.05 mm - 0.35 mm

Examine the robots in detail

Welding Machine Used

Fronius TPS 320i or TPS 500i.
Max Current Value

320 A - 500 A

Supported Welding Method

MIG/MAG (Optional: TIG, Laser)

Supported Welding Processes

Standard, Pulse, LSC, PMC and CMT.

Supported Technologies

WeldConnect, WeldCube, SmartManager

Examine the welding machines in detail

Technical Specifications

Model WELDONE R
Number of Stations 2
Robot Type 6-Axis Industrial Robot
Robot Reach 1500 mm- 2000 mm
Robot Payload Capacity 4 kg - 20 kg
Positioner Type 3-Axis (1 Rotary Table, 2 Rotary)
Total Floor Area 15 m²
Power Requirement 3 Phase, 400V, 50Hz, 50A
Air Requirement 6 bar, 200 l/min
Torch Cleaning Automatic Torch Cleaning Station
Wire Cutting Automatic Wire Cutting System
TCP Calibration Automatic TCP Calibration (BullsEye)

Safety Systems

Safety Barriers Fully Enclosed Cabin, Safety Doors
Light Curtains Category 4 Safety Light Curtains
Emergency Stop Multiple Emergency Stop Buttons
Operator Safety Two-Hand Control, Safety PLC

Control System

Control Unit Industrial PC Based Control System
User Interface 10" Color Touch Screen
Programming Teach Pendant + Offline Programming
Communication Ethernet, Profinet, EtherCAT
Remote Access Remote Support via VPN Connection

Cell Variations

Feature Weldone R-300 Weldone R-600 Weldone R-1000
Positioner Payload Capacity 300 kg 600 kg 1000 kg
Max Payload Difference Between Stations 200 kg 350 kg 350 kg
Indexing Time 3.4 - 3.8 s 3.5 - 3.7 s 3.5 - 3.7 s
Fixture Area Dimensions (ø,h) ø1000mm/1250mm ø1000mm/1600mm ø1000mm/1600mm ø1200mm/2000mm ø1000mm/1600mm ø1200mm/2000mm
Suitable Robot Reach 1.50 m / 1.65 m 1.55 m / 2.00 m 1.55 m / 2.00 m
Cell Dimensions(w,l,h) 3050mm x 4200mm x 2500mm 3200mm x 5200mm x 2500mm 3500mm x 5600mm x 2500mm

Technical Drawings and Dimensions of the Positioner Used

Positioner Specifications

Variants Payload Capacity (kg) Max Payload Difference Between Sides (kg) Max Continuous Torque (Nm) Max Bending Moment (Nm) Indexing Time (s) Arc-to-Arc Time (s) Repeatability (r=500) Max Rotation Speed (°/s)
IRP R-300 300 200 350 650 3.4 - 3.8 5.2 - 5.6 ±0.05 180
IRP R-600 600 350 650 3300 3.5 - 3.7 5.8 - 6.0 ±0.05 150
IRP R-1000 1000 350 900 5000 3.5 - 3.7 5.8 - 6.0 ±0.05 150

* Maximum payload capacity decreases when the distance between the rotary unit and the support sleeve (R dimension) is greater than 2000mm.

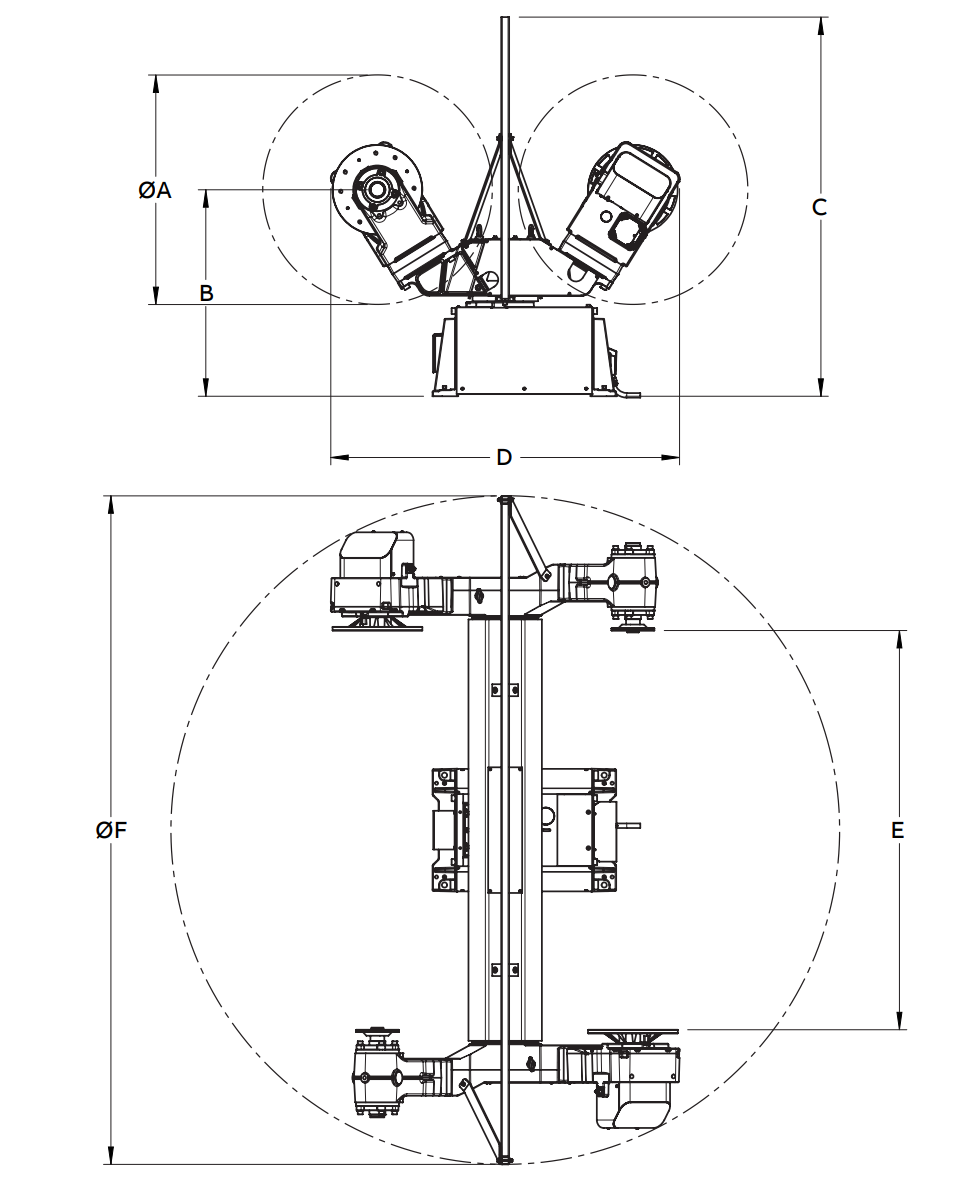

Positioner Dimensions

Variants Ø A B C D E Ø F
IRP R-300 1000 950 1900 1368 1250 2380
1000 950 1900 1368 1600 2620
IRP R-600/1000 1000 950 1900 1625 1600 3000
IRP R-1000/1000 1000 950 1900 1625 2000 3350
IRP R-600/1200 1200 1035 1900 1730 1600 3000
IRP R-1000/1200 1200 1035 1900 1730 2000 3350

Tyhra Catalog

Technical catalog of all our services.

Tyhra_Technical_Catalog.pdf
3.2 MB

ABB Programming Guide

Documentation on how to program ABB robots.

ABB_Programming_Guide.pdf
4.5 MB

Layout Plan

2D top-view layout drawing of the cell.

Weldone_A_Layout.pdf
5.7 MB

Unique Advantages Offered by Weldone

It stands out with features that set new standards in the field of welding automation.

Smart Cell Management

Designed in compliance with Industry 4.0, our system performs all cell management via a central Industrial PC. With this powerful infrastructure, you can:

Instant data access and full control via HMI
Remote monitoring of all system functions.
Specialized encryption system for authorized personnel.

This holistic approach provides maximum flexibility, security, and efficiency in your production processes.

IoT-Based Remote Access and Performance Tracking

Weldone Robotic Welding Cells are in constant communication with our smart web platform. In this way:

Real-time Efficiency Analysis: You can monitor the robot's operating efficiency and performance metrics in real-time via the web interface.
Instant Error Notifications: You can instantly view all faults and warnings in the system and quickly identify the source of the problem.
Service and Intervention: You can prevent production losses by allowing our expert team to perform instant fault detection and intervention via remote access.

Maximum Occupational Safety

Enclosed and protected cabin design creates a safe working environment by completely isolating your operators from moving equipment such as welding fumes, arc flash, and the robot arm.

Light Curtain and Area Scanner: Stops robot movements instantly by detecting unexpected entries into the cell.
Safety Door Lock: Prevents robot movements when cell doors are opened.
Crashbox System: Stops robot movements instantly in case of unexpected contact between the robot arm and the part or fixture.

Economic and Fast Return on Investment

Standardized production is much more cost-effective compared to custom solutions. It ensures a quick return on your investment thanks to increased production speed and quality.

Plug & Play Convenience

Forget long and complex installation processes. Weldone welding cells allow you to start production immediately by being commissioned in minimum time after arriving at your facility.

Minimum Floor Space

It provides maximum savings from your production area with its compact design. It helps you use your valuable factory space in the most efficient way.

Easy Portability

Thanks to the single-piece or modular chassis structure, you can easily change its location within the facility with a forklift according to changes in your production plan.

Operator Friendly and Ergonomic

Part loading and unloading processes are designed with operator ergonomics at the forefront. This reduces fatigue, increasing efficiency and working comfort.

Standard and Modular Structure

While our proven standard designs offer reliability through mass production, their modular structure allows them to be easily expanded or revised according to your future needs.
