Weldone 2I Robotic Welding Cell
It stands out with features that set new standards in the field of welding automation.

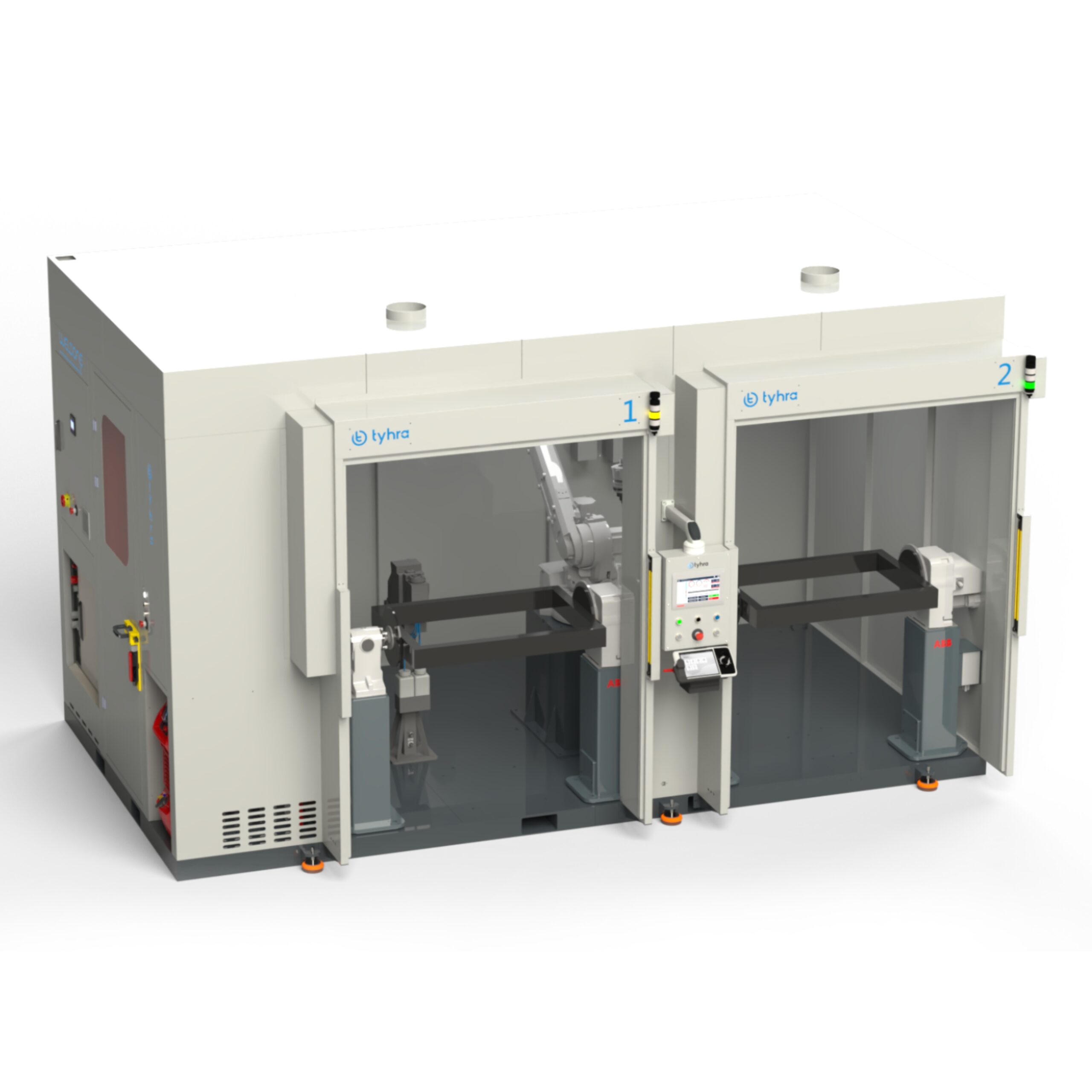

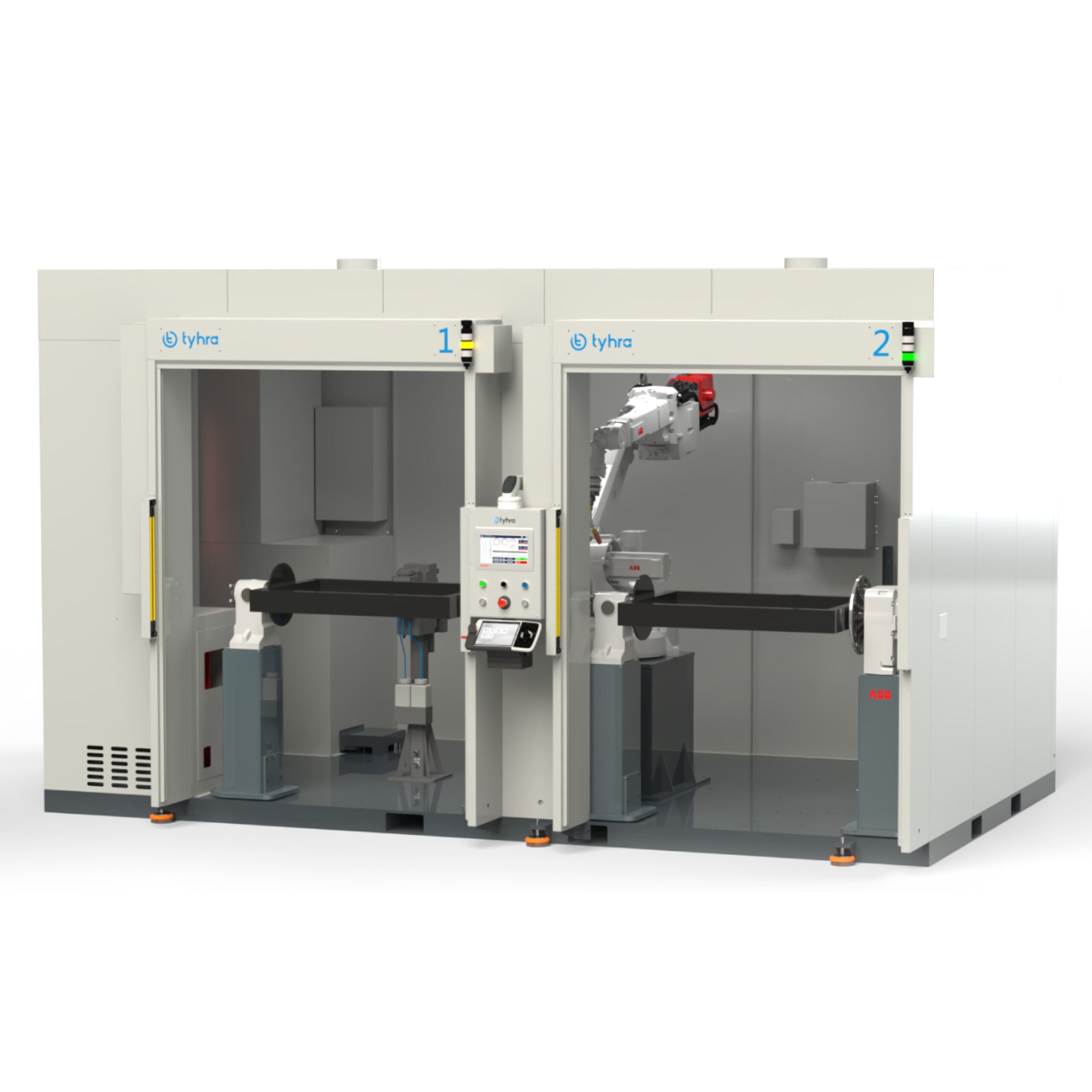

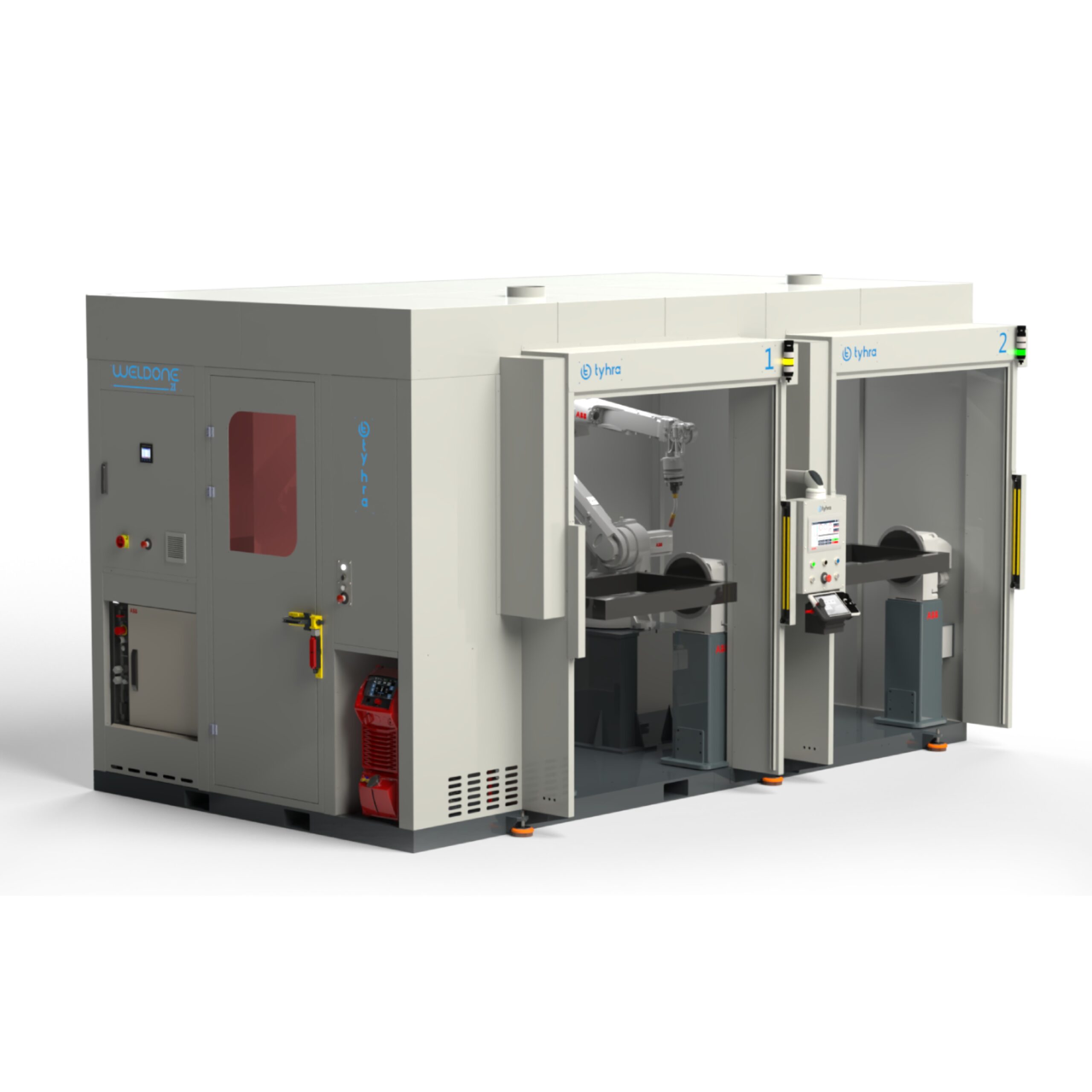

Weldone 2I Series with Dual Stations and Single-Axis Positioner

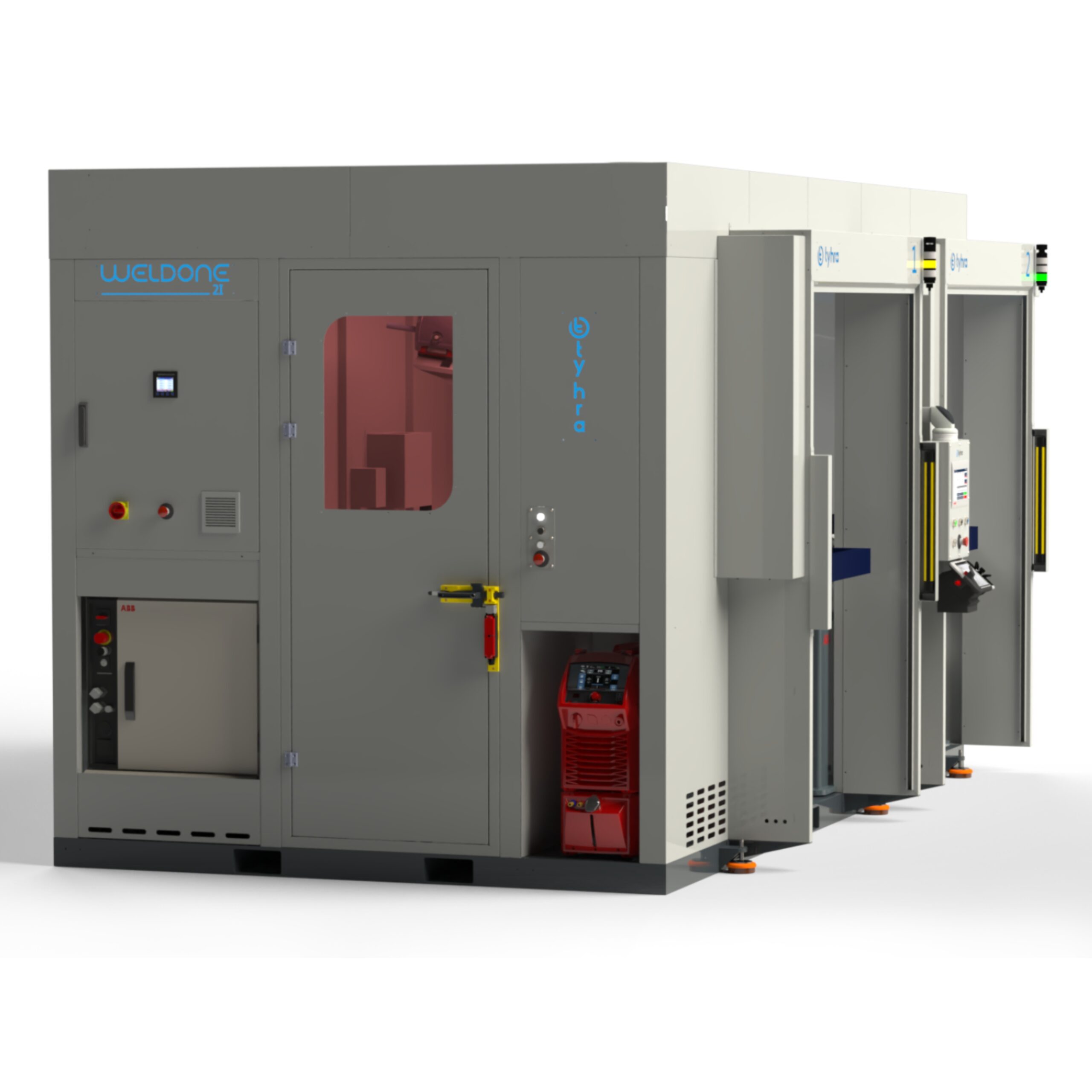

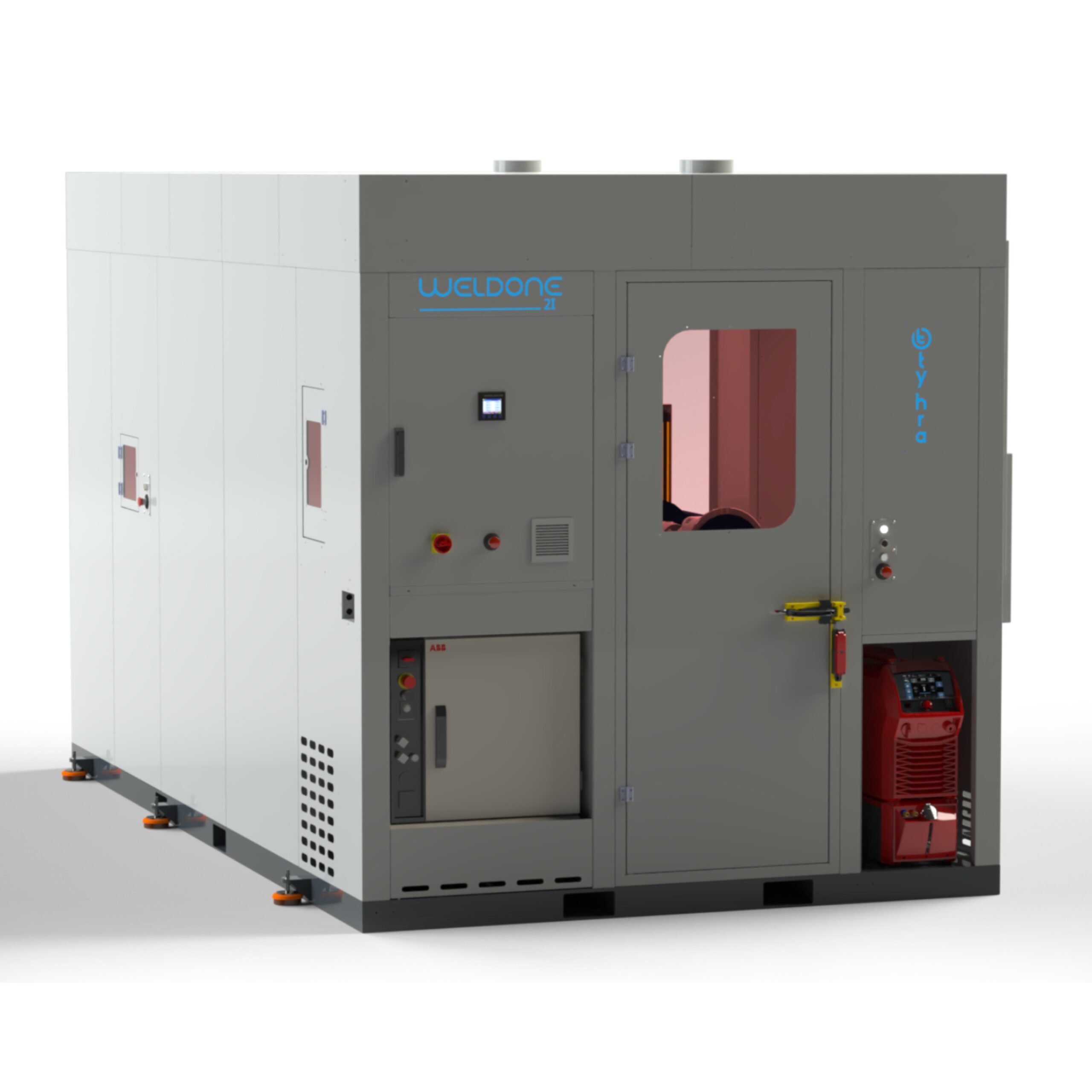

Weldone 2I is a high-efficiency, two-station robotic welding cell specifically designed for parts requiring short cycle times. With its compact design, it makes robotic automation accessible for workshops with limited space by occupying a minimum footprint.
The Tyhra robotic welding cell is manufactured based on safety and superior functionality. Thanks to its robust structure, it offers long-lasting use and is specifically designed to maximize efficiency in robotic applications with its easy portability.

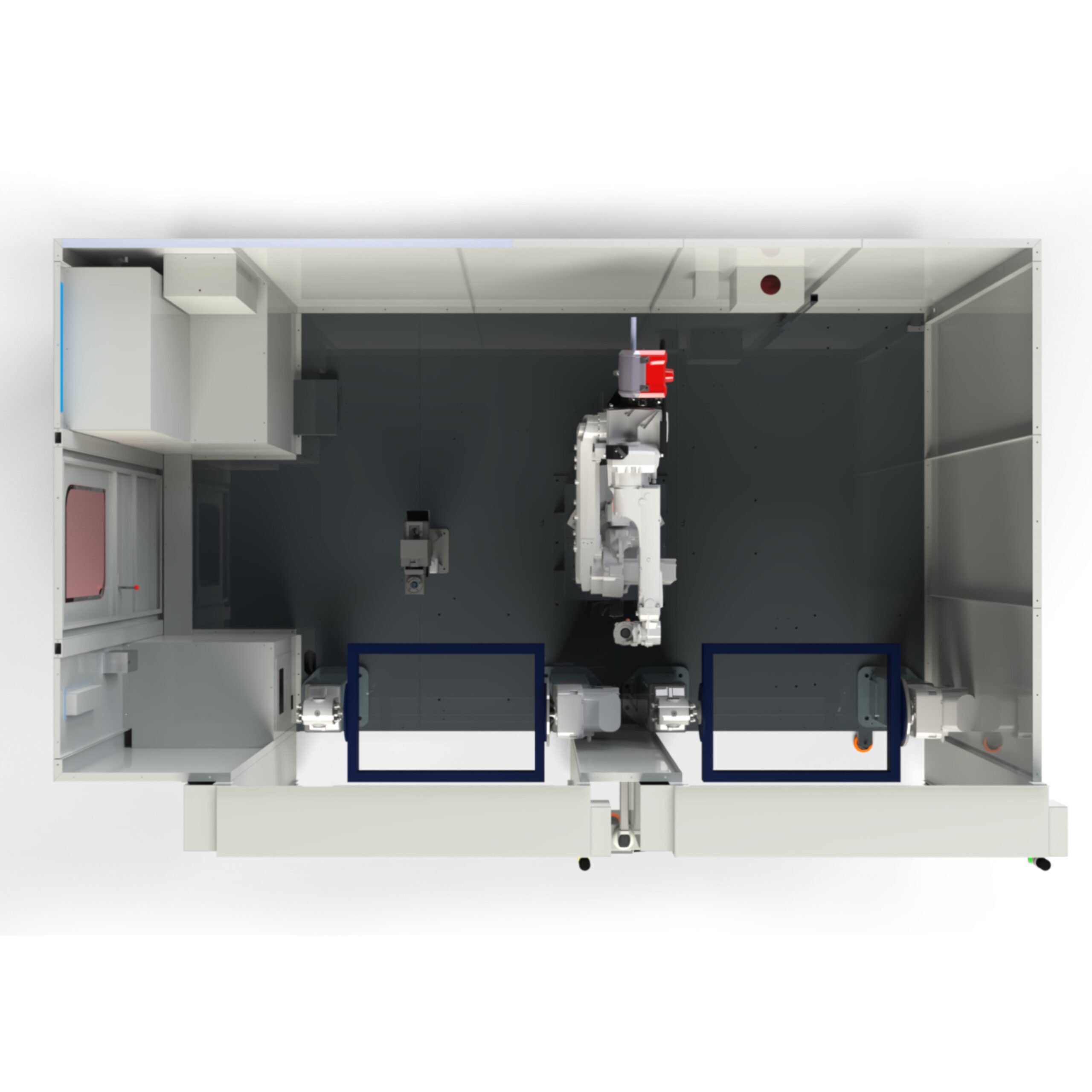

In these cells, the robot, fixture table, and positioners are integrated onto a single platform. This ensures that even if the cell's location changes, existing welding programs remain intact. Thus, operators save significant programming time.

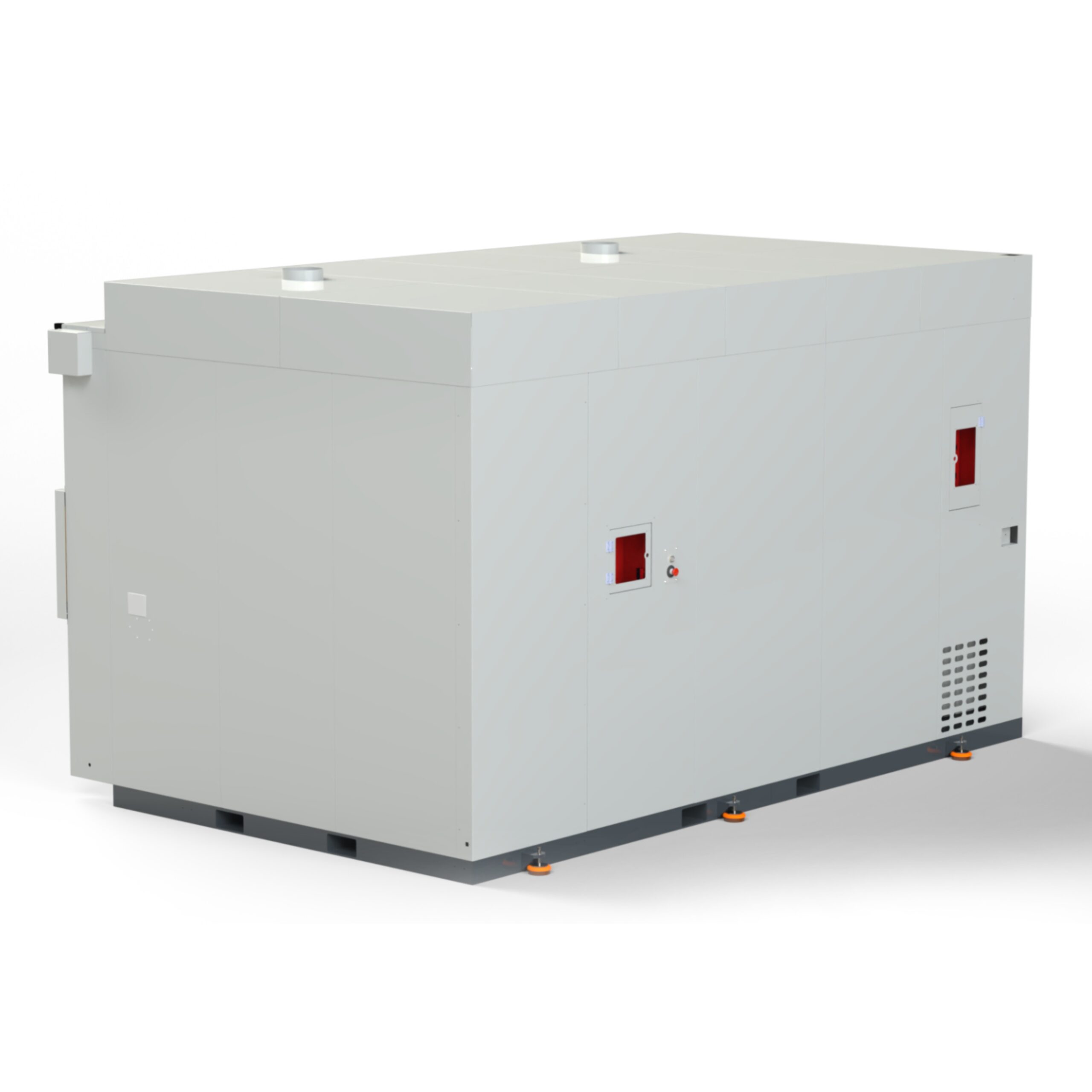

All welding equipment is positioned within the cell. Additionally, a dedicated safety maintenance door is available for robot maintenance. Harmful gases generated during the welding process are safely discharged through suction vents inside the cabin.
Standard Equipment
- Power Distribution and Automation Panel (400VAC, 220 VAC, 24 VDC)
- Pneumatic Control and Distribution Panel
- Fully Enclosed Cell System
- Service Door and Safety Equipment
- Service Window
- Light Curtains for Loading Area Safety

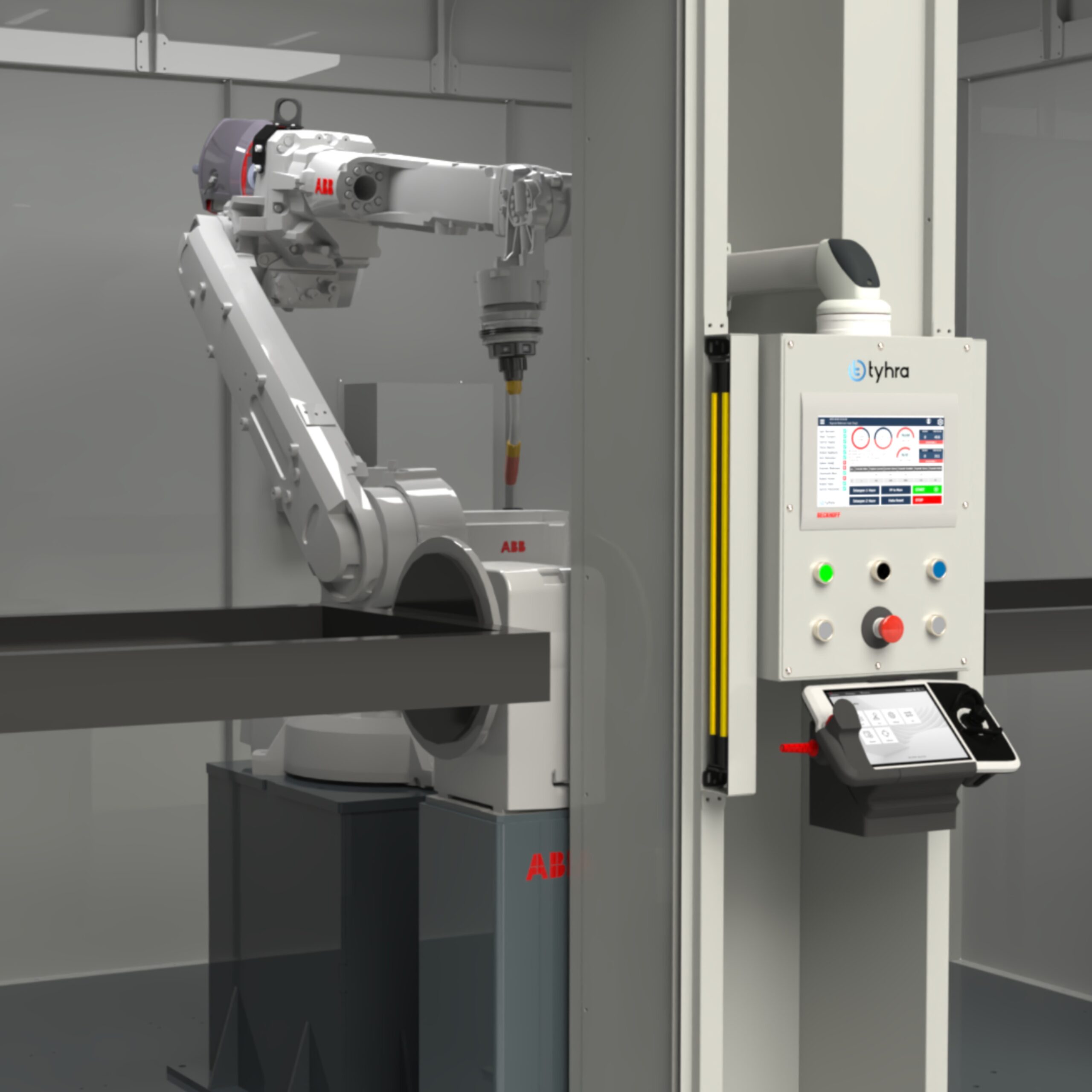

- 11" Operator Panel Fully Integrated with Robot
- Torch Cleaning Station
Optional Equipment
- Remote Access and Data Collection System
- Energy Analyzer
- Area Scanner
- Air and Signal Infrastructure for Fixtures on Positioners
- 15" Operator Panel
- Welding Wire Presence Control
- In-Cell Process Monitoring Camera
- Automatic Torch Calibration Unit
Positioner Used (L-Type)
Load Capacity
300-5000 kg
Position Repeatability
0.05 mm
Max Fixture Width
ø1250 mm - ø2200 mm
Max Fixture Length
4000 mm
Compatible Robots
Compatible robots in order: IRB 1520ID, IRB 1660ID, IRB 2600, IRB 2600ID
Reach
1.50 m - 2.00 m
Payload
4 kg - 20 kg
Position Repeatability
0.02 mm - 0.05 mm
Path Repeatability
0.05 mm - 0.35 mm
Welding Machine Used
Fronius TPS 320i or TPS 500i.
Max Current Value
320 A - 500 A
Supported Welding Method
MIG/MAG (Optional: TIG, Laser)
Supported Welding Processes
Standard, Pulse, LSC, PMC, and CMT.
Supported Technologies
WeldConnect, WeldCube, SmartManager
