C Series Positioner

The C Series positioner features a dual-station solution where the robot operates on one side while the operator performs loading and unloading operations on the other. The workpiece is fixed and cannot be moved during the process. A screen is placed between the two stations to protect the operator from arc radiation.

Payload Capacity

500-1000 kg (each side)

Indexing Time

3.3 s - 3.8 s

Repeatability

±0.05 (r=500)

Number of Axes (Excl. Main Rotary Axis)

0 (Fixed Workpiece Position)

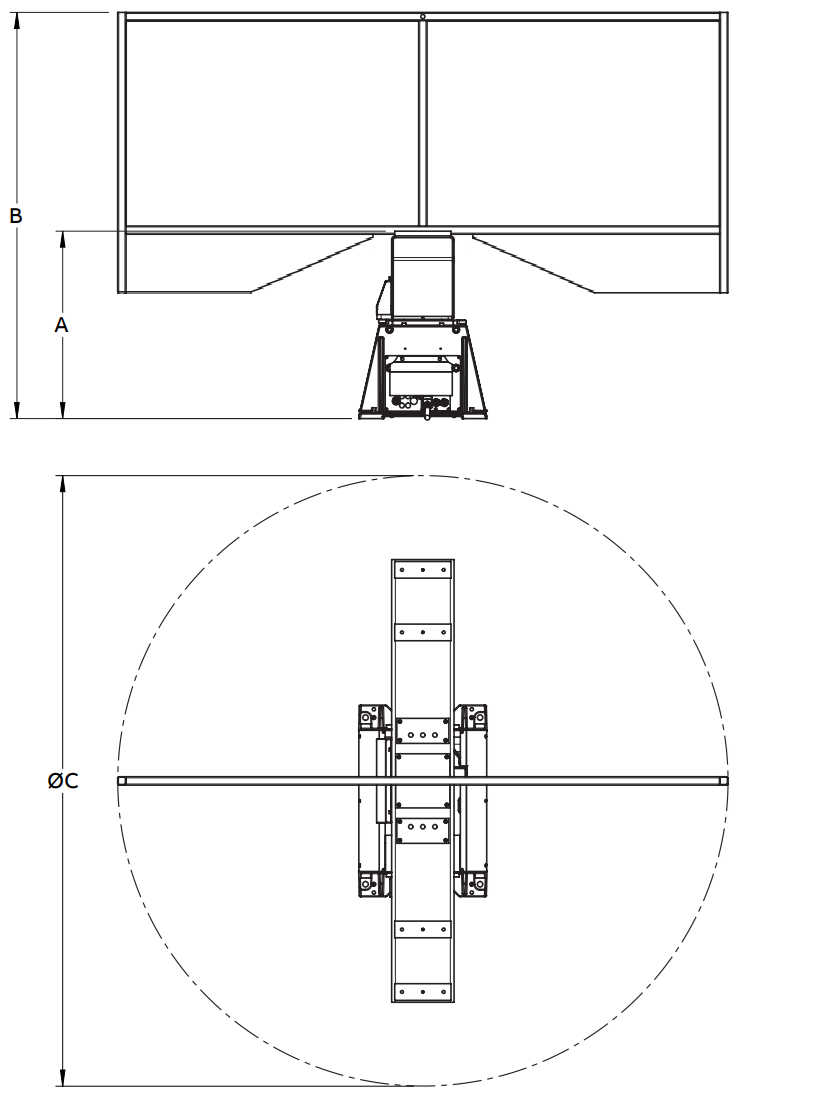

Technical Drawing

C Series Technical Drawing

Model Variations

Positioner Specifications

Variants Payload Capacity (kg) Max. Load Difference (kg) Indexing Time (s) Weld-to-Weld Time (s) Repeatability (r=500)
C-500 500 (each side) 350 (each side) 3.3 - 3.8 5.1 - 5.6 ±0.05
C-1000 1000 (each side) 500 (each side) 3.3 - 3.8 5.6 - 6.0 ±0.05

Positioner Dimensions

Variants A B ØC
IRP C-500 800 1850 2450
IRP C-1000 900 1950 2930

* All dimensions are in millimeters (mm).
