The L Series positioner is suitable for applications requiring one or two stations and workpieces that need to rotate around a single axis to reach the optimum processing position. Standing out with its compact design and high payload capacity, this series caters to a wide range of applications.
300-5000 kg
4000 mm
1250-2200 mm
360°
| Model | Payload Capacity (kg) | Max Torque (Nm) | Max Bending Moment (Nm) | Repeatability (r=500) | Max Rotation Speed (°/s) |
|---|---|---|---|---|---|
| L-300 | 300 | 350 | 600 | ±0.05 | 180 |
| L-600 | 600 | 650 | 3300 | ±0.05 | 150 |
| L-1000 | 1000 | 900 | 5000 | ±0.05 | 150 |
| L-2000 | 2000 | 3800 | 15000 | ±0.05 | 90 |
| L-5000 | 5000 | 9000 | 60000 | ±0.05 | 39 |
* The maximum payload capacity decreases when the distance between the drive unit and the idler unit (dimension A below) is greater than 2000 mm.

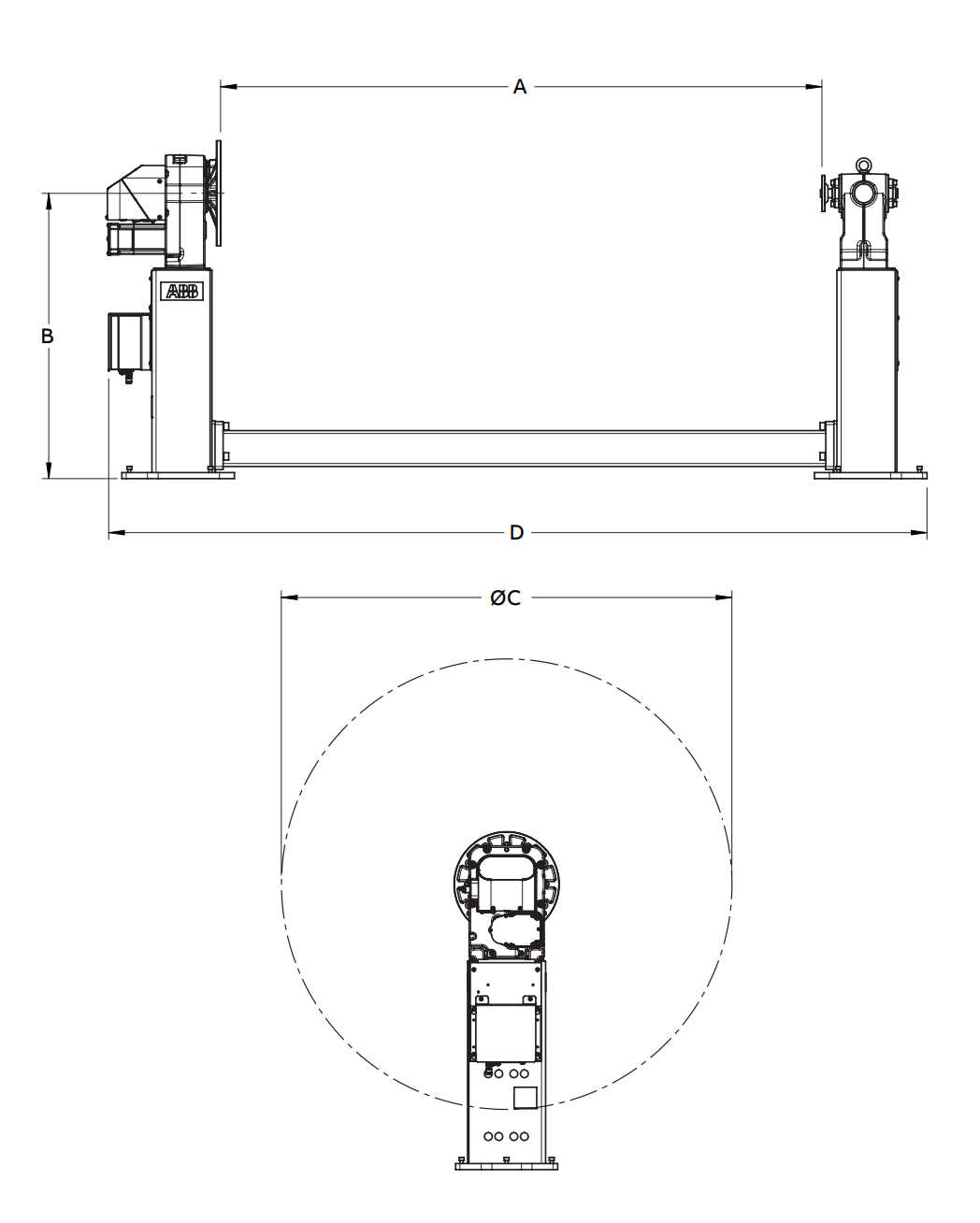

| Variants | A | øB | C | D | E | øF |
|---|---|---|---|---|---|---|
| IRP L-300 | 1250 | 950 | 1500 | 1979 | - | - |
| 1600 | 950 | 1500 | 2329 | - | - | |
| 2000 | 950 | 1500 | 2729 | - | - | |
| 2500 | 950 | 1500 | 3229 | - | - | |
| 3150 | 950 | 1500 | 3879 | - | - | |
| 4000 | 950 | 1500 | 4729 | - | - | |
| IRP L-600
IRP L-1000 |
1250 | 950 | 1500 | 2182 | - | - |
| 1600 | 950 | 1500 | 2532 | - | - | |
| 2000 | 950 | 1500 | 2932 | - | - | |
| 2500 | 950 | 1500 | 3432 | - | - | |
| 3150 | 950 | 1500 | 4082 | - | - | |
| 4000 | 950 | 1500 | 4932 | - | - | |
| IRP L-2000 | 1250 | 950 | 1500 | 2423 | - | - |
| 1600 | 950 | 1500 | 2773 | - | - | |
| 2000 | 950 | 1500 | 3173 | - | - | |
| 2500 | 950 | 1500 | 3673 | - | - | |
| 3150 | 950 | 1500 | 4323 | - | - | |
| 4000 | 950 | 1500 | 5173 | - | - | |
| IRP L-5000 | - | 1200 | 2200 | - | - | - |
| - | 1200 | 2200 | - | - | - | |
| - | 1200 | 2200 | - | - | - | |
| - | 1200 | 2200 | - | - | - | |
| - | 1200 | 2200 | - | - | - | |
| - | 1200 | 2200 | - | - | - |
