The A Series positioner is designed for applications where workpieces need to be rotated around two axes to reach the optimum processing position. It is suitable for single or dual-station applications. With a turning diameter of up to 1450 mm and a payload capacity of up to 750 kg at each station, it enables the welding of heavy and large parts.
250-750 kg
900-950 mm
1000-1450 mm
360°
| Model | Payload Capacity (kg) | Max Continuous Torque (Nm) | Repeatability (r=500) | Max Rotation Speed (°/s) Axis 1 | Max Rotation Speed (°/s) Axis 2 |
|---|---|---|---|---|---|
| A-250 | 250 | 350 | ±0.05 | 150 | 180 |
| IRP A-500 | 500 | 650 | ±0.05 | 90 | 150 |
| IRP A-750 | 750 | 900 | ±0.05 | 90 | 150 |

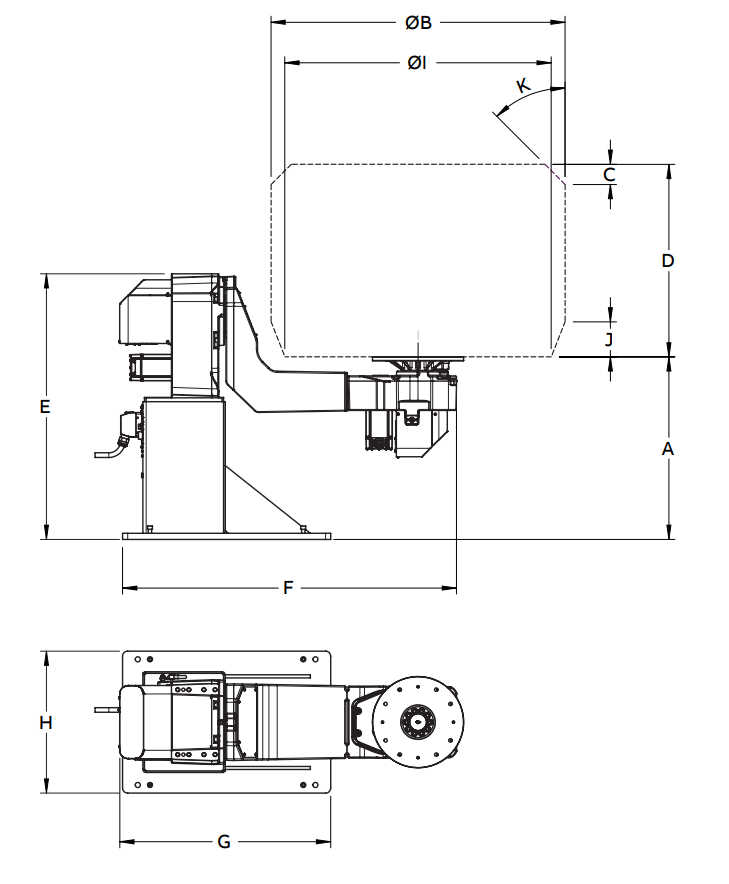

| Model | A | øB | C | D | E | F | G | H | øI | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A-250 | 900 | 1180 | 0 | 900 | 1210 | 1293 | 910 | 440 | 1000 | 173 | 0° |
| 700 | 1000 | 100 | 950 | 1110 | 1457 | 1026 | 700 | 1000 | 0 | 45° | |
| A-500/1000 & A-750/1000 | 800 | 1000 | 0 | 950 | 1210 | 1457 | 1026 | 700 | 1000 | 0 | 45° |
| 900 | 1000 | 0 | 950 | 1310 | 1457 | 1026 | 700 | 1000 | 0 | 45° | |
| A-500/1450 & A-750/1450 | 700 | 1450 | 250 | 950 | 1110 | 1682 | 1026 | 700 | 1450 | 0 | 45° |
| 800 | 1450 | 0 | 950 | 1210 | 1682 | 1026 | 700 | 1450 | 0 | 45° | |
| 900 | 1450 | 0 | 950 | 1310 | 1682 | 1026 | 700 | 1450 | 0 | 45° |
