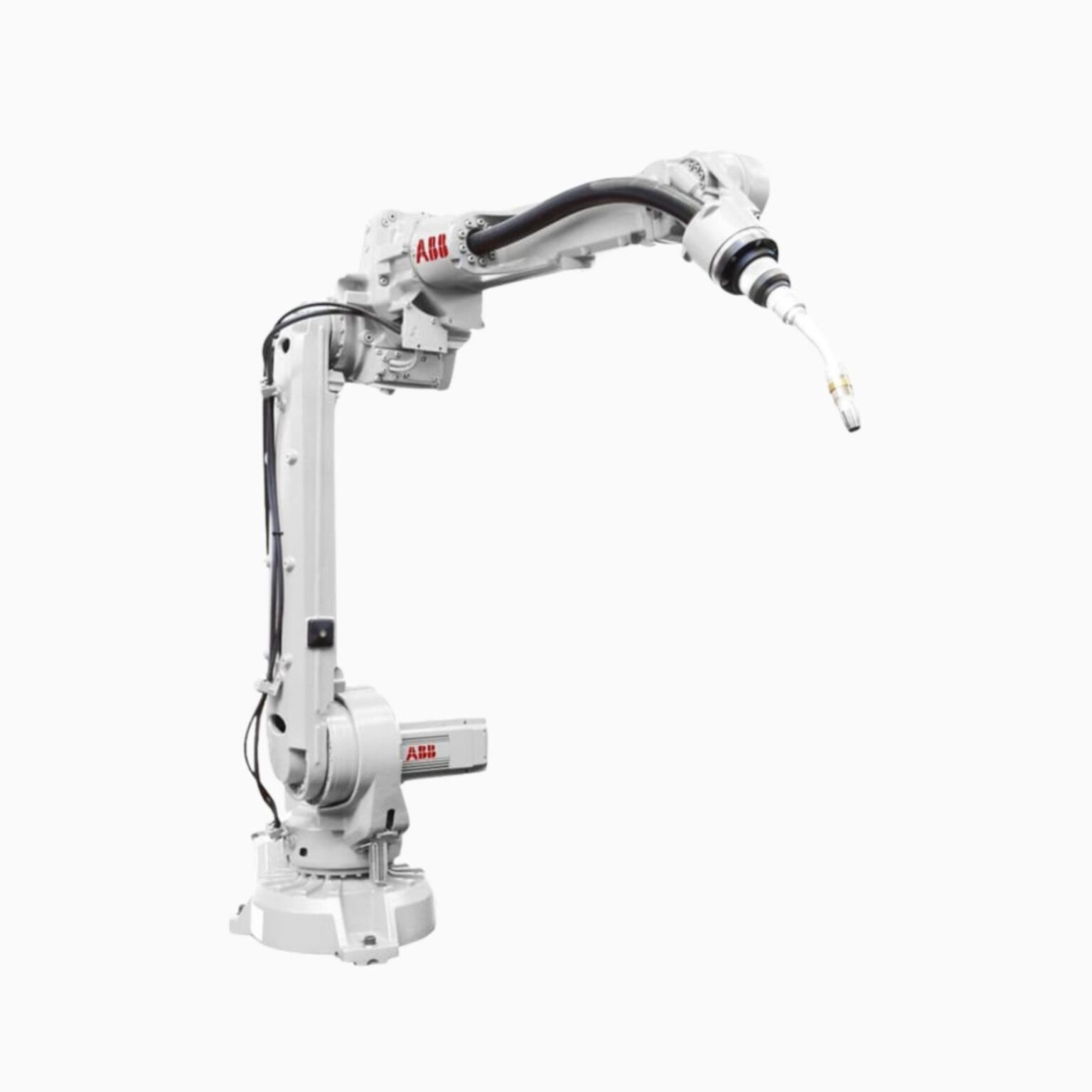

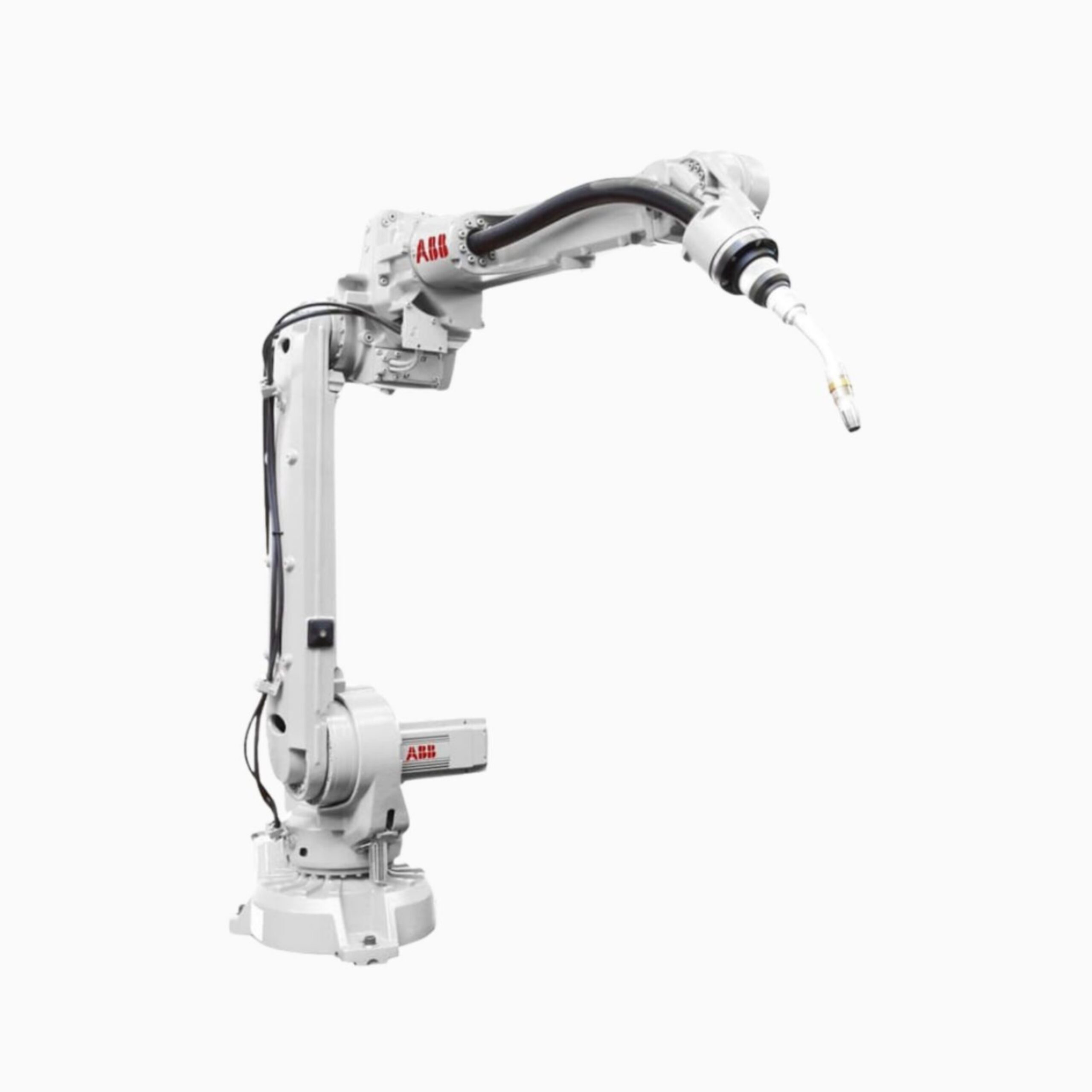

IRB 2600ID Robot
The IRB 2600ID is a versatile robot designed for industrial applications with integrated process cabling, featuring high precision and repeatability.
Key Features
| Robot Model | Reach (m) | Payload (kg) | Center of Gravity (mm) | Wrist Torque (Nm) |
|---|---|---|---|---|
| IRB 2600ID-15/1.85 | 1.85 | 15 | 10 | Axis 4&5: 34.6 Axis 6: 11 |
| IRB 2600ID-8/2.00 | 2 | 8 | 15 |
Axis 4&5: 31.4 Axis 6: 10.2 |
Number of Axes
6
Protection Class
IP67 for base and lower arm; IP54 for upper arm
Mounting
Floor, wall, shelf, tilted, inverted mounting
Performance (ISO 9283)
| Model | Pose Repeatability | Path Repeatability |
|---|---|---|
| IRB 2600ID-15/1.85 | 0.026 mm | 0.30 mm |
| IRB 2600ID-8/2.00 | 0.023 mm | 0.27 mm |
Technical Information
Electrical Connections
Supply Voltage
200-600 V, 50/60 Hz
Power Consumption
3.4 kW
Physical Properties
Robot Base
676 x 511 mm
Robot Weight
IRB 2600ID-15/1.85: 273 kg
IRB 2600ID-8/2.00: 276 kg
